Wet Room Shower Tray 800 x 800 x 20 mm Quadra Central FastFlow Dallmer

Name: Wet Room Shower Tray 800 x 800 x 20 mm Quadra Central FastFlow Dallmer
SKU: TSQC88
Price: 241.00 GBP
Availability: InStock

8 Reviews

£241.00 Save 40%

£401.67

Tax included

The 800 mm x 800 mm shower base is 20 mm thick and is designed to be tiled over, providing level access into the shower without a step up. The shower base is produced from XPS foam and re-enforced on both sides with a fibreglass mesh and coated with a flexible cement. This surface is ready to tile onto. It's lightweight and flexible enough to absorb movement within the structural floor.

The shower base has a machined slope cut into it, providing a 4 way fall from each corner to the drain. The XPS foam has great acoustic properties and therefore is an excellent choice for showers here in the UK, when you can generally hear everything that's going on upstairs!

It can be easily trimmed if necessary, say around pipes or other obstacles, or if you are fitting a shower really small space. The height of the drain is 10mm, however this can be extended to 17mm using the extension provided.

Tray size:

Drain Cover

Standard

Drain Cover

Waste Trap

Waterproofing kit

Underfloor heat mat

Shower screen

Quantity

Product Code TSQC88

Current stock level:
Last Items (3)

Order in: 0h 00m 00s
To receive on Monday

Tradesmen discounts
20% for companies

Call 020 8145 4804 to confirm next day delivery

Check availability & delivery time

The 150 mm x 150 mm Dallmer gulley is positioned in the centre and it comes complete with a standard stainless steel cover.

The K frame and stainless steel plate are factory fitted to the shower base to provide a perfect surface for the trap sealing ring to adhere to making installation really easy. If you are using thicker tiles, an extension for the K frame is included.

The outlet pipe comes with a 2” BS ABS solvent weld adaptor allowing for connection to UK pipes quick and secure. You can also upgrade to a 5 mm solid stainless steel cover available in 2 different designs as well.

Reference TSQC88S2Q48

Data sheet

Size: 800mm x 800mm
Thickness: 20mm
Drain position: Centre
Channel length: 600mm
Material: XPS Foam Sheet
Reinforcement: Fibre glass mesh & cementous glue.
Fall: 4-way 2% towards the drain
Additionals: Tanking kit
Drain surface: brush
Cleaning: From above (Easy clean system)
Model: Line
Set consists: Wet room tray · integrated linear drain body · drain grating · siphon trap

Specific References

EAN13: 5901797296575

Download

We highly recommend to include a waterproofing kit for every tray installation.

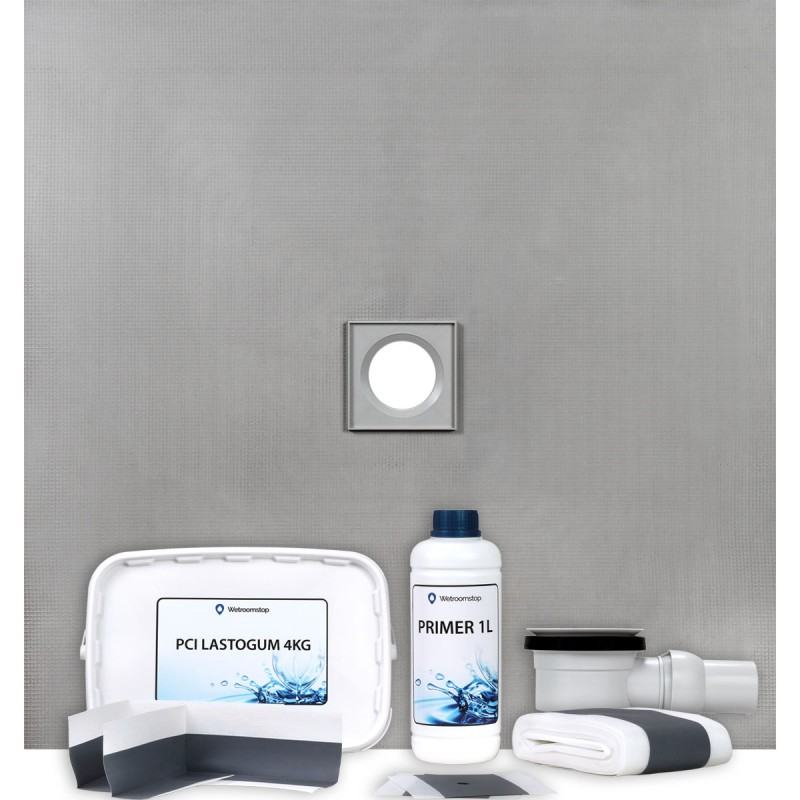

When buying our Shower Base and choosing to include a waterproofing kit you will also receive a special bucket with all the sealing materials that you will need. With this kit you will be able to insulate and waterproof all your shower area and prepare it for tiling.

Contents:

4 kg of PCI Lastogum liquid foil
1l of primer
2 sealing internal corners
2 sealing cuffs 10 x 10 cm
10 m of sealing tape

Dallmer type 48 KE shower trap is included with our Shower Base. It featuers ball joint connector adjustable by 15 degrees. For more information and technical drawing please see Attachments tab above.

Top size: 150 x 150 mm
Frame size: 143 x 143 mm
Height: 86.5 mm
Width: 108 mm
Outlet : 50 mm
Base material: ABS
Base material: 304 stainless steel
Standard: DIN EN 1519

You can choose which grating you want with your Shower Base tray. We offer three different patterns to suit your needs.

STANDARD
This grating is stamp formed from thin stainless steel and features default well known stripes design.

CIRCLES
This grating is laser cut from thick piece of premium stainless steel and features circles design.

STRIPES
This grating is also laser cut from thick piece of premium stainless steel and features stripes design

Dallmer Waste Trap

Parts included with every Wetroomstop Dot Shower Base:

Sturdy XPS board
Integrated square drain
Drain cover
Dallmer shower trap
(optional, highly recommended) Wetroomstop Waterproofing Kit

Can I Fit A Wet Room Tray Myself?

How Much Do Wet Rooms Cost?

Are Wet Rooms More Expensive Than Traditional Bathrooms?

Will A Wet Room Add Value To My Home?

How Easy Is It To Clean A Wet Room?

Do Wet Rooms Require Much Maintenance?

Can I Install Underfloor Heating in a Wet Room?

Are There Any Common Problems With Wet Rooms?

How Do You Dry Out A Wet Room?

How Do You Stop A Wet Room From Flooding?

Why Is My Wetroom Not Draining?

What Fall Should A Wetroom Floor Have?

How To Unblock A Wet Room Drain?

How Long Does It Take To Install A Wet Room?

Do Wet Rooms Get Mouldy?

How To Clean Grout Out Of A Wetroom Floor?

What Type Of Drain Is Best For A Wet Room?

Why have a curbless shower?

What Are Wet Room Floors Made Of?

Can You Use Lino In A Wetroom?

What Kinds Of Tiles Are Best For Wet Rooms?

Can I Cover A Wet Room Floor?

What Flooring Is Best For A Wet Room?

How Do You Slope A Wetroom Floor?

How Much To Install A Wet Room Floor?

What Is The Best Way Of Cleaning A Wet Room Floor?

How To Use Jointing Tape?

What's The Difference Between Tanking Tape & Normal Tape?

How To Correctly lay down Tanking Tape?

Does Waterproof Tape Actually Work?

How Do You Seal A Wetroom Floor?

How Do You Waterproof A Wet Room?

Are Wet Rooms Disability-Friendly?

Are Wet Rooms Suitable For The Elderly?

Can I Get A Wet Room With A Seat?

Can I Use A Wheelchair In A Wetroom?

Are Wet Rooms Dangerous?

Can I Get A Grant To Fit A Wet Room?

What Is A Wetroom Tray?

How Do You Raise A Shower Tray?

What Sizes Do Shower Trays Come In?

How Much Does A Shower Tray Cost?

Do you sell the waterproof liquid separately. If so how much would 5 litres cost?

No we do not currently sell the waterproofing liquid separately. You can purchase an additional tanking kit if you wish. It comes with 4 kg of lastogum, 1L of primer, 10m of sealing tape, 2 internal corners, and 2 pipe collars

I have a 1300x700 area which I want to fit a wet room shower tray. Am I able to buy a 1400x900 off yourselves and cut to fit?

Hello Luke,

Thank you for your message.

I can confirm that our trays are trimmable and there are several options for your 1300 x 700 shower area.

We can manufacture a bespoke tray to match that size exactly. It would take about 10 days and would have higher price but it wouldn't need any extra materials or effort,

900 x 1400 tray with central drain, so you can cut it down to size symmetrically,
800 x 1200 tray, cutting down to size the 800 mm dimension and extending 1200 to 1300 using tile backer boards, which are made of similar material to what the tray is made of.
If you can afford waiting, in my opinion it would be the best idea to go for a custom size wet room tray.

In case of any other questions I will be happy to assist.

Kind regards

Chris 020 8145 4804

Were do u install both pipe collars that are provided in tanking kit?

The pipe collars provided with our tanking kits are to be used if you have water pipes sticking out of the wall for your shower valve. They are optional and only need to be used if required.

What is the flow capacity for the shower drain

The flow rate of the Dallmer type 48 KE shower trap is 40.82L/min

Hi there, I am using 18mm thick tiles to tile my wet room floor, will they be compatible with the Quadra Offset FastFlow Dallmer. Thanks

The Quadra gulleys have a lip 10 mm, additionally there is a 7mm extension that is provided. If you are using a thicker tile such as 18mm you can request a second extension in order to raise the cover even higher to accommodate for the extra height required. You can then set the times at the correct height using the appropriate amount of tile adhesive to match the height of the cover.
