Wetroomstop Flexi Shower Base 900mm x 1700mm x 30mm With 600mm End Linear drain

£374.62 Save 40%
Tax included

The 900 mm x 1700 mm shower base is 30 mm thick before tiling. Designed for level access showers without a step up. The shower base is produced from XPS foam and covered on both sides by a cementous coating and a reinforcing net. This surface is ready to tile onto. It's light yet flexible enough to absorb movement within the structural floor.

The shower base comes with a pre-made fall from each corner to the drain thus helping the tiler. XPS foam has great acoustic properties and therefore is especially useful in the UK when you can generally here what's going on upstairs! It can be easily cut if necessary, say around pipes or other obstacles. The maximum height for this drain is 14mm. The beauty of these trays is the drain body is plastic. This enables the installer to drill the hole for the trap  avoiding any collision with a floor joist.

Tray size:
Tanking kit
Drain Cover
Waste Trap

The 600 mm linear has a end position and is factory fitted. The plastic drain body is designed  so that the installer can drill the hole for the trap to avoid collision with the floor joist. We even supply the hole cutter, so don't worry about that. The upper visible parts are all made of 304 grade stainless steel and include an adjustable frame to take care of different thickness of tiles and a reversible cover. The cover can be presented in brushed stainless steel or can be flipped over for tiling inside to give that integrated look. There is only a small space for the water to escape.

Data sheet

Channel length
XPS Foam Sheet
Fibre glass mesh & cementous glue.
4-way 2% towards the drain

Specific References

No reviews
Dallmer waste trap
Dallmer SOLOS BS 2'' shower trap is included with our Flexi Shower Base. It featuers ball joint connector adjustable by 15 degrees. For more information and technical drawing please see Attachments tab above.

  • Height: 105 mm
  • Width: 85 mm
  • Outlet : 50 mm
  • Material: polypropylene, ABS
  • Standard: DIN EN 274
Parts included

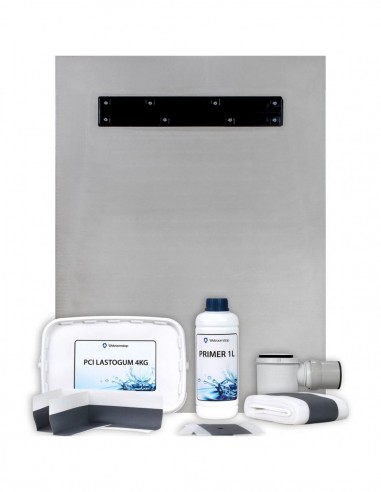

Parts included with every Wetroomstop Flexi Shower Base:
  • Sturdy XPS board
  • Integrated linear drain
  • Reversible drain cover (tilable/plain)
  • Dallmer shower trap
  • Hole cutter kit
  • Wetroomstop Waterproofing Kit
hole cutter kit
With every Shower Base we supply special hole cutting kit to easily cut a hole in the drain wherever you want to fit the shower trap between floor joints or pipes.
Parts included
When buying our Shower Base you will also receive a special bucket with a Waterproofing Kit. With this kit you will be able to insulate and waterproof all your shower area and prepare it for tiling.

  • 4 kg of PCI Lastogum liquid foil
  • 1l of primer
  • 2 sealing internal corners
  • 2 sealing cuffs 10 x 10 cm
  • 10 m of sealing tape
