Wet Room Shower Tray 900 x 1200 x 30 mm Linear End 600 mm Flexi Dual

31 Reviews
£345.38 Save 40%
£575.63
Tax included

The 900 mm x 1200 mm shower base is 30 mm thick and is designed to be tiled over, providing level access into the shower without a step up. The shower base is produced from XPS foam and re-enforced on both sides with a fibreglass mesh and coated with a flexible cement. This surface is ready to tile onto. It's lightweight and flexible enough to absorb movement within the structural floor.

The XPS foam has great acoustic properties and therefore is an excellent choice for showers here in the UK, when you can generally hear everything that's going on upstairs! It can be easily trimmed if necessary, say around pipes or other obstacles, or if you are fitting a shower that is not quite the size of the tray.

The shower base has a machined slope cut into it, providing a 4 way fall from each corner to the drain. The enveloped shaped pattern helps guide the water toward the channel, eliminating the need to create fall on your own.

Tray size:
Floor Finish
Drain Cover
  • Reversible (Tileable / Solid)
Drain position
  • End
Slope
Drain Cover
Waste Trap
Waterproofing kit
Underfloor heat mat
Shower screen
Check availability & delivery time

The beauty of these trays and what really sets them apart is the plastic drain body. The reason it is plastic as opposed to stainless steel is to allow for the installer to choose exactly where along the channel he wants the waste trap to connect to. This gives you the flexibility to work around osticles under the tray that may otherwise interfere with the location of the waste trap.

The 600mm long channel consists of a 3 piece system.

  • The plastic drain body that is integrated into the tray.
  • The adjustable frame. That can be raised from 12 to 18mm depending on the thickness of tiles you are using.
  • The reversible cover. That can be left right side up for a smooth stainless steel finish or it can be flipped over and tiled inside of for a completely tile finish.

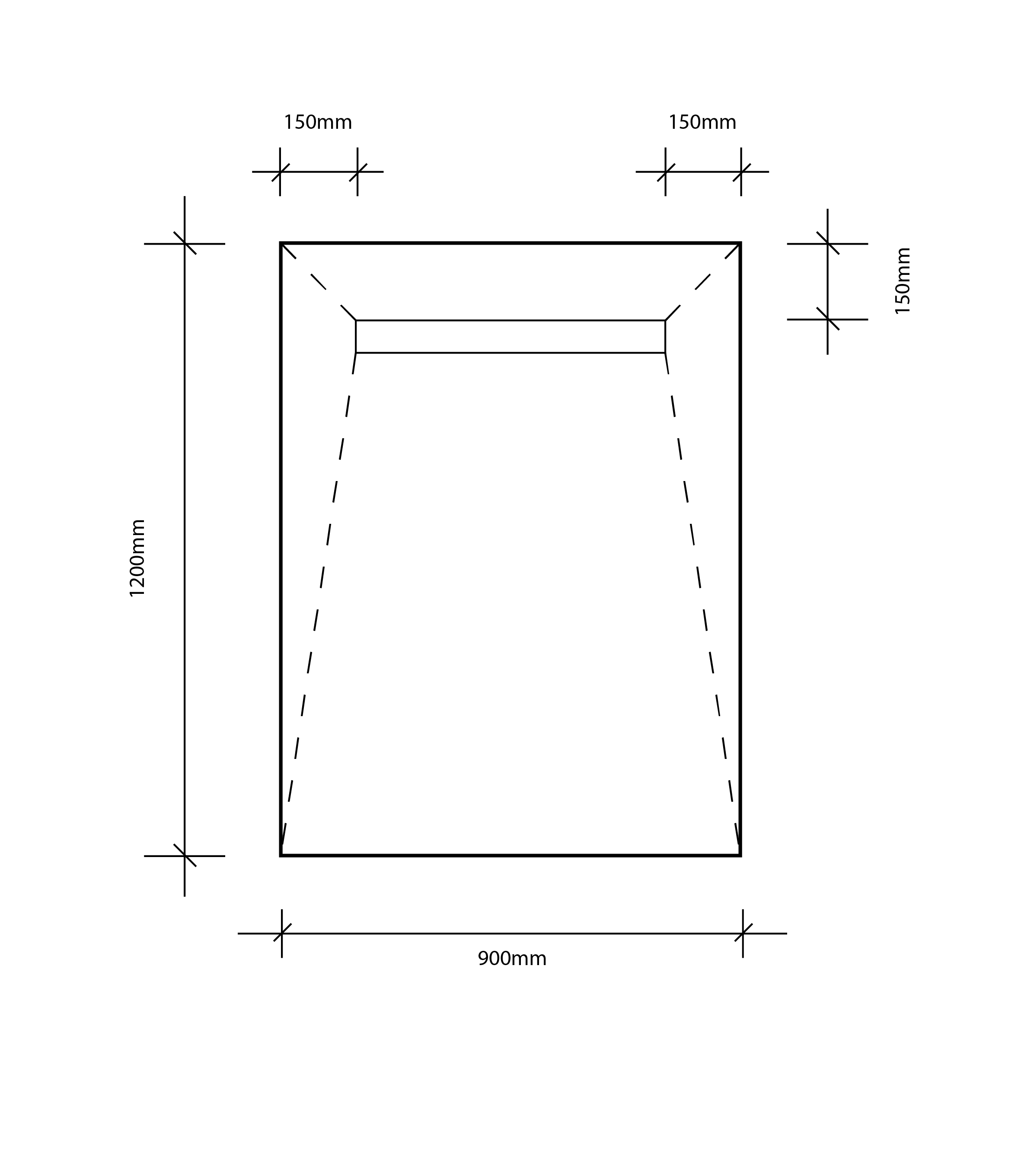

The linear channel is positioned and is factory fitted along the top end of the tray, 150mm for the edge.

The visible parts of the drain channel are all made of 304 grade stainless steel and can be adjusted to conform to different thickness of tiles.

We Supply the hole cutter, for cutting the hole for the waste trap

TLF9126ED3DBS

Data sheet

Size
1200mm x 900mm
Thickness
30mm
Channel length
600mm
Material
XPS Foam Sheet
Reinforcement
Fibre glass mesh & cementous glue.
Fall
4-way 2% towards the drain
Model
Line

Specific References

EAN13
5901797296711
Dallmer Waste Trap
Dallmer SOLOS BS 2'' shower trap is included with our Flexi Shower Base. It featuers ball joint connector adjustable by 15 degrees. For more information and technical drawing please see Attachments tab above.

  • Height: 105 mm
  • Width: 85 mm
  • Outlet : 50 mm
  • Material: polypropylene, ABS
  • Standard: DIN EN 274
Parts Included
Parts included with every Wetroomstop Flexi Shower Base:
  • Sturdy XPS board
  • Integrated linear drain
  • Reversible drain cover (tilable/plain)
  • Dallmer shower trap
  • Hole cutter kit
  • (optional, highly recommended) Wetroomstop Waterproofing Kit
Hole Cutter Kit
With every Shower Base we supply special hole cutting kit to easily cut a hole in the drain wherever you want to fit the shower trap between floor joints or pipes.
Parts Included
We highly recommend to include a waterproofing kit for every tray installation.
When buying our Shower Base and choosing to include a waterproofing kit you will also receive a special bucket with all the sealing materials that you will need. With this kit you will be able to insulate and waterproof all your shower area and prepare it for tiling.

Contents:
  • 4 kg of PCI Lastogum liquid foil
  • 1l of primer
  • 2 sealing internal corners
  • 2 sealing cuffs 10 x 10 cm
  • 10 m of sealing tape
    Can I Fit A Wet Room Tray Myself?

    How Much Do Wet Rooms Cost?

    Are Wet Rooms More Expensive Than Traditional Bathrooms?

    Will A Wet Room Add Value To My Home?

    How Easy Is It To Clean A Wet Room?

    Do Wet Rooms Require Much Maintenance?

    Can I Install Underfloor Heating in a Wet Room?

    Are There Any Common Problems With Wet Rooms?

    How Do You Dry Out A Wet Room?

    How Do You Stop A Wet Room From Flooding?

    Why Is My Wetroom Not Draining?

    What Fall Should A Wetroom Floor Have?

    How To Unblock A Wet Room Drain?

    How Long Does It Take To Install A Wet Room?

    Do Wet Rooms Get Mouldy?

    How To Clean Grout Out Of A Wetroom Floor?

    What Type Of Drain Is Best For A Wet Room?

    How Do Linear Drains Work?

    How To Clean Linear Drains?

    Do I Need To Maintain Linear Drains?

    Do Linear Drains Ever Clog?

    Can I Install Linear Drains In A Concrete Floor?

    Can I Install Linear Drains In A Wooden Floor?

    Can I Install A Linear Drain With Tiled Showers?

    Does A Linear Drain Have To Go Wall-To-Wall?

    How Often Do I Need To Clean A Linear Drain?

    Why have a curbless shower?

    Where does the linear drain go in a curbless shower?

    What Are Wet Room Floors Made Of?

    Can You Use Lino In A Wetroom?

    What Kinds Of Tiles Are Best For Wet Rooms?

    Can I Cover A Wet Room Floor?

    What Flooring Is Best For A Wet Room?

    How Do You Slope A Wetroom Floor?

    How Much To Install A Wet Room Floor?

    What Is The Best Way Of Cleaning A Wet Room Floor?

    How To Use Jointing Tape?

    What's The Difference Between Tanking Tape & Normal Tape?

    How To Correctly lay down Tanking Tape?

    Does Waterproof Tape Actually Work?

    How Do You Seal A Wetroom Floor?

    How Do You Waterproof A Wet Room?

    Are Wet Rooms Disability-Friendly?

    Are Wet Rooms Suitable For The Elderly?

    Can I Get A Wet Room With A Seat?

    Can I Use A Wheelchair In A Wetroom?

    Are Wet Rooms Dangerous?

    Can I Get A Grant To Fit A Wet Room?

    What Is A Wetroom Tray?

    How Do You Raise A Shower Tray?

    What Sizes Do Shower Trays Come In?

    How Much Does A Shower Tray Cost?

    Do you sell the waterproof liquid separately. If so how much would 5 litres cost?

    No we do not currently sell the waterproofing liquid separately. You can purchase an additional tanking kit if you wish. It comes with 4 kg of lastogum, 1L of primer, 10m of sealing tape, 2 internal corners, and 2 pipe collars


    I have a 1300x700 area which I want to fit a wet room shower tray. Am I able to buy a 1400x900 off yourselves and cut to fit?

    Hello Luke,

    Thank you for your message.

    I can confirm that our trays are trimmable and there are several options for your 1300 x 700 shower area.

    We can manufacture a bespoke tray to match that size exactly. It would take about 10 days and would have higher price but it wouldn't need any extra materials or effort,

    • 900 x 1400 tray with central drain, so you can cut it down to size symmetrically,
    • 800 x 1200 tray, cutting down to size the 800 mm dimension and extending 1200 to 1300 using tile backer boards, which are made of similar material to what the tray is made of.
    • If you can afford waiting, in my opinion it would be the best idea to go for a custom size wet room tray.

    In case of any other questions I will be happy to assist.

    Kind regards

    Chris 020 8145 4804


    Were do u install both pipe collars that are provided in tanking kit?

    The pipe collars provided with our tanking kits are to be used if you have water pipes sticking out of the wall for your shower valve. They are optional and only need to be used if required.
